Waste tire recycling production line with automatic shredder

Category:

Waste Tire Recycling Machine

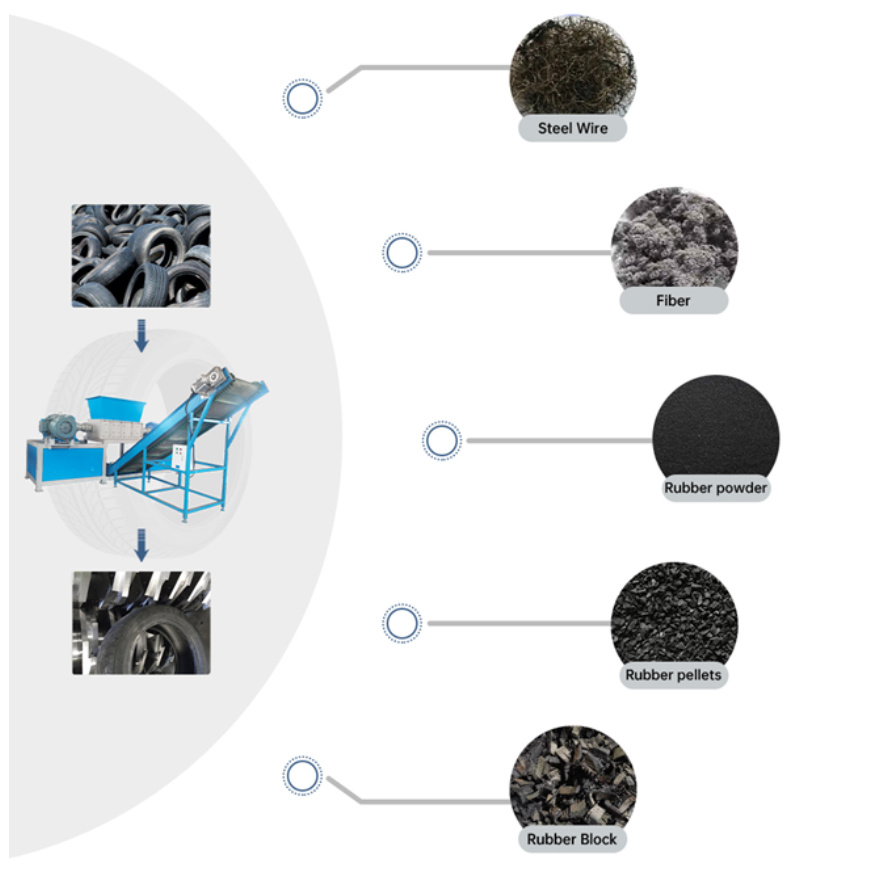

The waste tire recycling production line includes the following main equipment

Product message

Waste rubber recycling machine with tire shredder

The waste tire recycling production line includes the following main equipment
Wire pulling machine: extract the coarse steel wire from the tire
Feeding conveyor belt: conveying tires to the coarse crusher

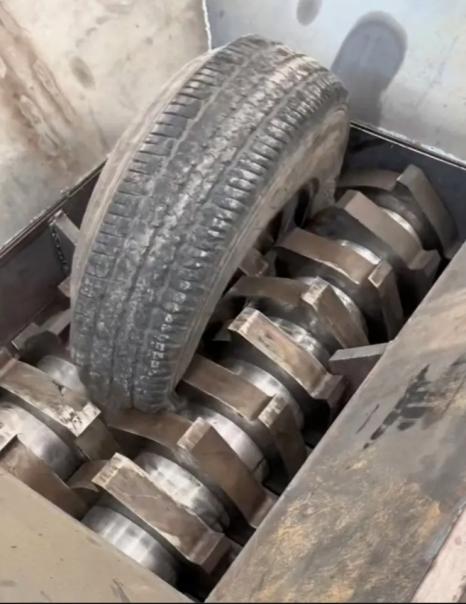

Double shaft shredder: Cut the tires into small pieces
Conveyor belt: conveying tire blocks
Steel wire separator: Crush tire blocks into 15-20mm granulates to separate rubber from steel wire
Magnetic separator: separating steel wires from rubber
Conveyor belt: conveying rubber particles
Crusher: Further crush rubber particles to 1-4mm to separate rubber from fibers and remove some fibers
Vibration screen: Sorting rubber particles based on granulate size to remove some fibers
Fiber separation system: Separate remaining fibers
Magnetic sorting machine: removes possible remaining small steel wires
Bagging system: Pack finished rubber particles or powder
Dust collector: collects dust and fibers generated by the production line
Control electrical: PLC control

Rubber shredder parameter:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm2000mm1400mm	6200mm2260mm1700mm	6400mm2700mm2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector
