Waste rubber recycling machine with tire shredder

Category:

Waste Tire Recycling Machine

Tire shredding and recycling production line is an effective way to solve the problem of waste tire. It realizes the environmentally friendly treatment of scrap tire, and the shredder adopts low-speed high torque shear structure to synchronously achieve crushing and shredding functions.

Product message

Longyuan Baihong presents cheap and discount Rubber Recycling pyrolysis plants, providing efficient solutions for rubber recycling with quality and affordability.

Waste rubber recycling machine with tire shredder
Tire shredding and recycling production line is an effective way to solve the problem of waste tire. It realizes the environmentally friendly treatment of scrap tire, and the shredder adopts low-speed high torque shear structure to synchronously achieve crushing and shredding functions.

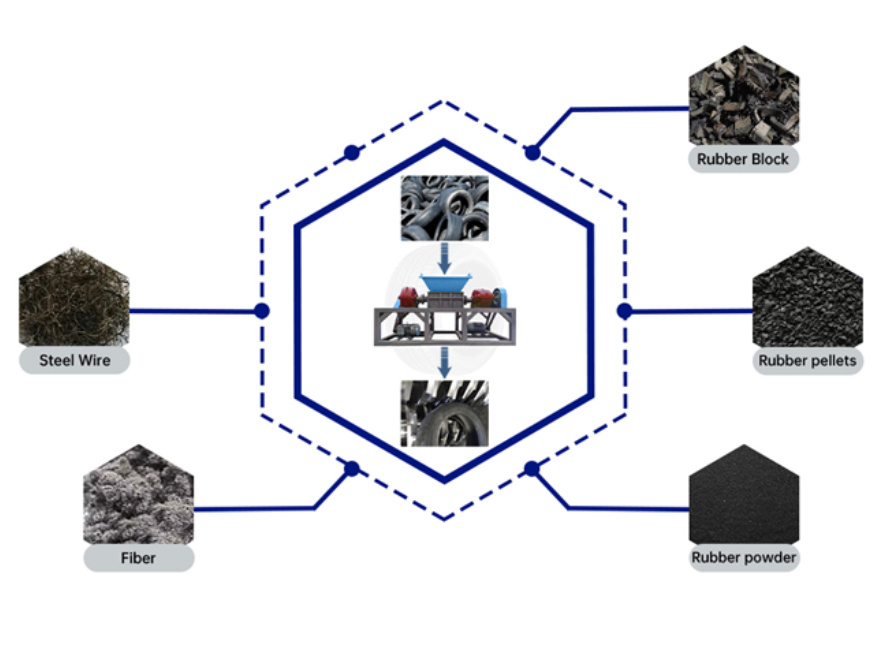

Structure of tire crushing and recycling production line:
1. Tire slitting machine (optional): Cut and separate the tire rim
3. Rim rolling machine (optional): Separate the tire rim steel wire
3. Conveyor (need): Conveying waste tires or rubber blocks
4. Dual axis shredder (need): Preliminary shredding of tires into rubber blocks (50mm-150mm)
5. Steel wire separator (need): Separate rubber and steel wire and process them into rubber particles (10mm-20mm)
6. Magnetic separator (need): Sorting steel wires from mixture of rubber and steel wires
7. Crusher (need): Crush the rubber particles to smaller size (1mm-7mm)
8. Vibration screen (need): Sort rubber particles of different sizes, and send oversized particles back to the crusher for secondary crushing
9. Grinding machine (need): Grind particles into powder (30-100 mesh)
10. Fiber separator (need): Remove foreign objects and fibers
11. Automatic bagging system (optional): Pack finished products

Rubber shredder parameter:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm2000mm1400mm	6200mm2260mm1700mm	6400mm2700mm2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector
