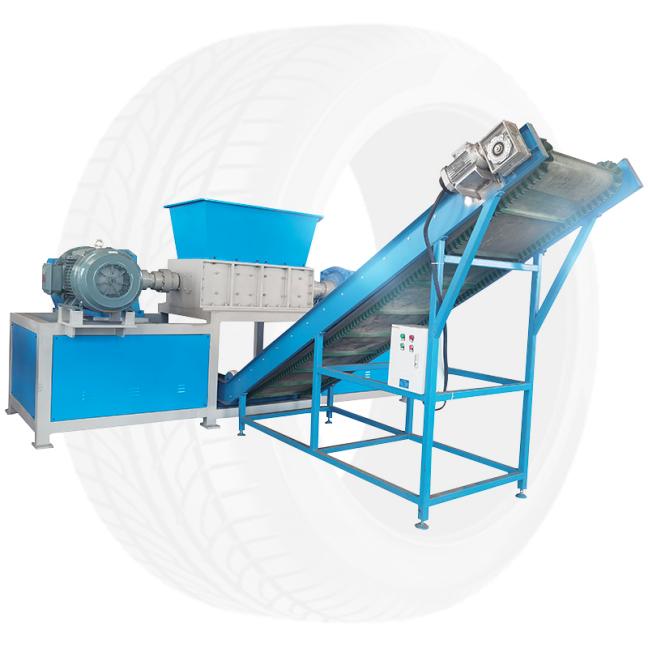

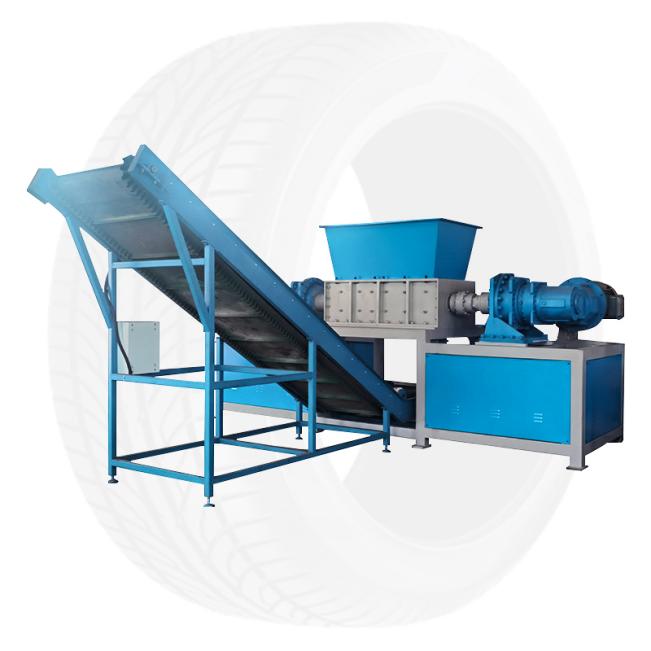

Automatic waste tire recycling machine with rubber crusher

Category:

Waste Tire Recycling Machine

The function of the waste tire recycling production line is to automatically separate rubber, steel wire, and fiber materials from waste tires, truck tires, and OTR tires, achieving tire crushing, steel wire separation, fiber separation, and tire powder making

Product message

Automatic waste tire recycling machine with rubber crusher
The function of the waste tire recycling production line is to automatically separate rubber, steel wire, and fiber materials from waste tires, truck tires, and OTR tires, achieving tire crushing, steel wire separation, fiber separation, and tire powder making
Features of tire crushing and recycling production line:
1. Direct feeding of the entire tire: No need for early cutting
2. From the entire tire to 1-7mm particles, the complete production line, the entire process from raw materials to finished product packaging;
3. Up to 3-7 people can complete all recycling production line operations
4.200kg/h -2000kg/h different output capacity: Configure recycling machine according to customer production requirements
5. Conduct machine testing and debugging before leaving the factory to ensure stable performance;
6. The installation and maintenance of the complete recycling production line are simple

Rubber shredder parameter

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm2000mm1400mm	6200mm2260mm1700mm	6400mm2700mm2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector
